Many overseas foundation contractors and bridge construction teams struggle to pick the right hydraulic pile cutter. The wrong model causes slow pile breaking, equipment damage, and expensive downtime. This buying guide covers all key selection factors, working condition matching, and model recommendations.
Pile Crusher Machine Key Technical Specifications
| Single-module weight | PCS | 4 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 |
| Combination of the total weight | KG | 1600 | 2640 | 2970 | 3300 | 3630 | 3960 | 4290 | 4620 | 4950 | 5280 | 5610 | 5940 |
| Pile diameter range | mm | 400-600 | 600-800 | 800-1000 | 1000-1150 | 1150-1300 | 1300-1500 | 1500-1650 | 1650-1800 | 1800-1970 | 1970-2200 | 2200-2360 | 2360-2500 |
| Hydraulic excavator | T | 20T-30T | 30T-40T | Hydraulic system/pump station | |||||||||
| Max.Thrust | 300KN | Max.Cylinder required | 20L/min | Machinery Tonnage | ≥20T | Location pinΦ35 | |||||||
| Max.Cylinder Trip | 300mm | Chisel diameter | 110mm | Single module weight | 335KG | ||||||||
| Max.Cylinder Pressure | 300MPa | Max.Hoist Capacity | ≤500mm | Singlemodulesize | 1015*865*340mm | ||||||||
Concrete Pile Breaker Selection
Before you pick any hydraulic pile cutter, check your site and pile conditions first. This saves you from costly mistakes.
① Pile type and shape – Is it a round cast-in-place pile or a square precast pile? The pile crusher machine comes in round and square types. Choose based on your pile shape.
② Pile diameter or side length – Round pile: 400mm to 2500mm. Square pile: 250mm to 650mm. This directly decides how many modules you need.
③ Power source available on site – Do you have a 20T+ excavator? Or do you need a hydraulic pump station with a crane or loader? The pile crusher can work with multiple power sources.
④ Working environment – Bridge construction over water? High-speed railway foundation? Urban building site with noise restrictions? Different sites have different requirements.
Working Principle – How the Hydraulic Pile Cutter Works

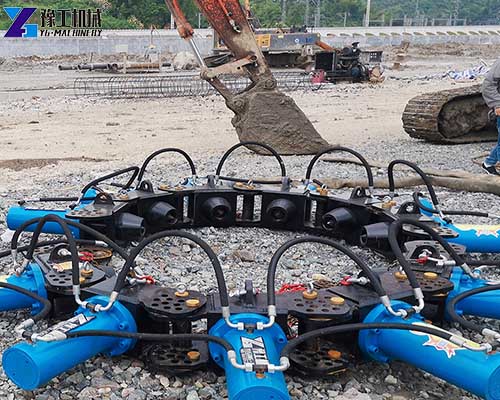

Pile crusher machine uses hydraulic pressure to drive multiple cylinders simultaneously. Each cylinder directly drives a chisel that presses inward against the pile body. The synchronized radial pressure breaks the pile head evenly. The modular design allows quick reconfiguration for different pile diameters through pin connections.
4 Key advantages of this design:
- Low noise – Hydraulic drive eliminates loud impact noise
- No vibration – Static radial pressing protects the mother pile
- Clean break – Even pressure creates a flat, level pile top
- Fast operation – One-time pressing breaks the pile head
Match Pile Crusher Model With Global Working Scenarios
1. Asian High-Speed Railway Bridge Foundation
- Scene: Large-scale bridge piling for high-speed rail. Hundreds of piles with diameters from 1000mm to 1500mm.
- Pain point of old solution: Manual pneumatic breakers are slow and create inconsistent pile tops. Labor costs are high for large pile groups.
- Recommended model & benefits: 10-12 module hydraulic pile cutter – 3300-3960KG, 1000- 1500 mm coverage. Fast cycle time for large pile groups. Consistent flat pile top meets railway quality standards. No vibration protects adjacent piles.
2. Middle East Building Foundation – Large Diameter Piles
- Scene: High-rise building foundation with large-diameter bored piles. 1800- 2200 mm diameter. Hot climate.
- Pain point of old solution: Breaking large piles with breakers takes days per pile. Heat makes manual work difficult.
- Recommended model & benefits: 15-16 module hydraulic pile cutter with hydraulic pump station – 4950-5280KG, 1800- 2200 mm coverage. Pump station provides reliable hydraulic power in hot conditions. Fast braking reduces exposure to heat.
3. North American Bridge Rehabilitation
- Scene: Replacing bridge pier piles. Limited access, working over water.
- Pain point of old solution: Heavy equipment is hard to position over water. Manual breaking is dangerous.
- Recommended model & benefits: 8-10 module concrete pile breaker with compact design – 2640-3300KG. Lighter weight makes positioning easier. Can work with smaller cranes. Quick breaking reduces time over water.
4. Square Pile Application – Precast Concrete Pile Breaking
- Scene: Square precast piles for building foundation. Side length 250- 650 mm.
- Pain point of old solution: Round pile breakers don’t fit square piles. Manual breaking is slow.
- Recommended model & benefits: Square-type hydraulic pile cutter with module conversion – modular design allows same base unit with square configuration. One machine for both round and square piles. Quick module changeover.
YG Global After-Sales & Export Support Reference
Overseas buyers worry about support more than local buyers. Here is what we provide:
| Support Item | Details |
| Packaging | Standard export packaging, moisture-proof & rust-proof for sea transport |
| Remote support | English video technical support, 7 days/week, 12 hours/day |
| Spare parts | Fast delivery from overseas warehouse |
| On-site training | Optional overseas engineer on-site training for large projects |
Send Project Details to Our Engineer
Tell us: pile diameter or square side length, pile shape (round or square), available excavator tonnage or power source (excavator / hydraulic system + crane / hydraulic system + loader), working country, and site conditions. Our engineer will recommend the most suitable hydraulic pile cutter model for you.
