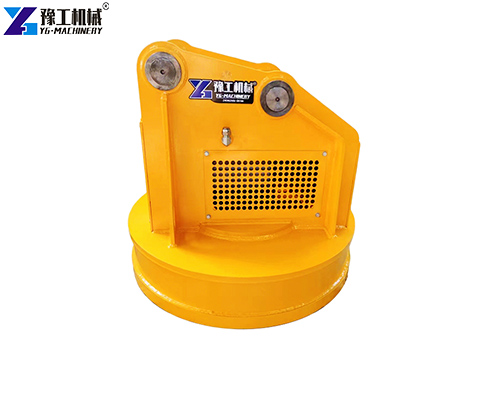

Excavator magnet for sale in the YGML series is a ferrous material handling attachment that turns any compatible excavator into a high-speed scrap loader. Powered by an integrated hydraulic generator – no external power source required – this hydraulic magnet for excavator features a Q345 manganese steel housing for superior strength and corrosion resistance, along with a semi-permanent design that minimises hydraulic line maintenance.
Available in smooth or toothed versions, this hydraulic excavator magnet quickly picks only ferrous metals without collecting dirt or rocks, making it ideal for scrap yards, demolition sites, and recycling plants.
Excavator Magnet Attachment – Full Parameter Table
Below are the complete specifications for our excavator magnet for sale series. All models are designed for ferrous material handling and loading operations.
| Item/Model | Unit | YGML02 | YGML04 | YGML06 | YGML08 | YGML10 | YGML14 | YGML20 |
| Suitable Excavator | ton | 4-6 | 7-11 | 12-16 | 17-23 | 24-30 | 31-40 | 41-50 |
| Weight | kg | 1400 | 1500 | 1890 | 2000 | 2200 | 2500 | 2800 |
| Power | kW | 5 | 8 | 8 | 10 | 10 | 15 | 15 |
| Outer Diameter | mm | 700 | 800 | 900 | 1100 | 1200 | 1300 | 1400 |
| Working Flow | lpm | 30-55 | 50-100 | 90-110 | 100-140 | 130-170 | 200-250 | 250-320 |
| Working Pressure | bar | 170 | 180 | 190 | 200 | 210 | 250 | 250 |
Receive Detailed Parameter List
Applications of Hydraulic Magnet for Excavator

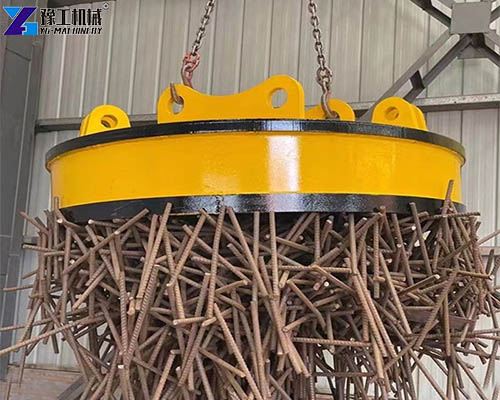

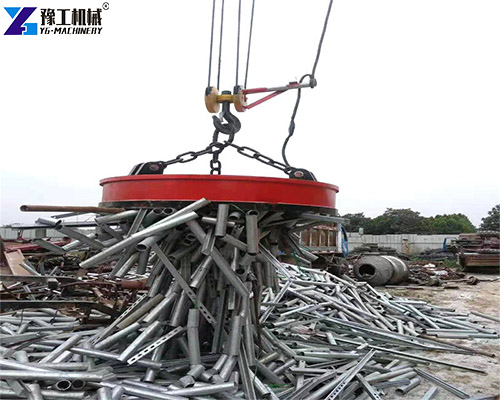

An excavator magnet for sale is the ideal tool for handling and loading ferrous materials – scrap iron, steel rebar, shredded metal, and cast iron parts. Common job sites include:
- Scrap yards – sorting and loading loose ferrous scrap into trucks or containers.
- Demolition sites – recovering steel reinforcement from concrete debris.
- Recycling plants – separating ferrous metals from mixed construction waste.
- Steel mills and foundries – moving scrap charge buckets and finished billets.
Unlike mechanical grapples, this machine uses electromagnetic force to pick up only ferrous objects, leaving dirt, rocks, and non-ferrous materials behind. The result is cleaner loading and higher purity of recycled material.
Share Your Site Conditions With Us
Core Advantages of Hydraulic Excavator Magnet
This excavator magnet for sale offers three major benefits that set it apart from conventional lifting tools:
- Hydraulic generator drive – The magnet is powered by a built-in hydraulic generator that runs off the excavator’s auxiliary circuit. No external electrical supply or additional generator set is required, saving installation time and reducing equipment complexity.
- Q345 manganese steel construction – The magnet housing and mounting frame are made from high-strength Q345 manganese steel. This material provides excellent impact resistance and corrosion protection, even in dusty or damp environments.
- Semi-permanent design – The hydraulic motor and generator unit are engineered for long-term operation with minimal maintenance. Sealed bearings and wear-resistant components reduce the need for frequent hydraulic line repairs, cutting overall upkeep costs.
For operators, the simple on/off control allows rapid picking and dropping – just drive over the scrap, activate the magnet, and move to the drop zone. This makes every attachment a productive asset for high-volume recycling and demolition projects.
Find The Right Solution For Your Job
Hydraulic Magnet for Excavator vs. Grapple and Bucket – Performance Comparison
To help you understand why an excavator magnet for sale outperforms other attachments in ferrous handling, here is a direct comparison:
| Feature | Hydraulic Magnet for Excavator | Grapple | Bucket |
| Picking speed | Very fast – just drive over | Slow – need to grab | Slow – need to scoop |
| Selectivity | Picks only ferrous metal | Grabs everything | Grabs everything |
| Cleanliness | Does not pick dirt or rocks | Picks debris | Picks dirt and debris |
| Complexity | Simple on/off | Multiple moving parts | Simple but inefficient |
| Best for | Scrap yards, demolition, recycling | Mixed material handling | Bulk material loading |
As the table shows, the attachment delivers the fastest cycle times for ferrous scrap. It also reduces the amount of contaminants in your output, which is critical when selling recycled steel to mills. For operations that handle only ferrous loads, this is the most cost-effective solution.
We also offer a toothed version (optional) for the magnet’s bottom plate, which improves grip on irregularly shaped scrap like twisted rebar or tangled wire. The standard smooth plate works best for clean, flat scrap; the toothed design adds extra friction without affecting magnetic force.
Get Your Project‑Specific Quote
Why Choose Our Excavator Magnet for Sale?
When looking for a reliable hydraulic excavator magnet, you need more than just a product – you need a partner who understands your workflow. We provide:
- Exact model matching – Based on your excavator’s tonnage, hydraulic flow, and pressure, we recommend the correct YGML series magnet to ensure optimal lifting force and operating efficiency.
- CE and ISO certification – All units come with full documentation for customs clearance and site safety inspections.
- Bulk order support – For recycling yards and demolition contractors with multiple machines, we offer volume discounts and coordinated shipping.
- Spare parts availability – Common wear items (hydraulic seals, electric coils, and cable assemblies) are stocked for quick replacement.
- Technical guidance – Our team provides installation drawings, operation manuals, and remote video assistance for setup and troubleshooting.
Every excavator magnet for sale is factory-tested under full load before delivery, so you receive a product that is ready to work from day one.
Get Your Excavator Magnet for Sale Quote Today
Ready to upgrade your scrap handling efficiency? Send us your excavator model, hydraulic flow rating, and the type of ferrous material you process. We will reply within 24 hours with a tailored recommendation, price, and delivery schedule for the right excavator magnet attachment.
