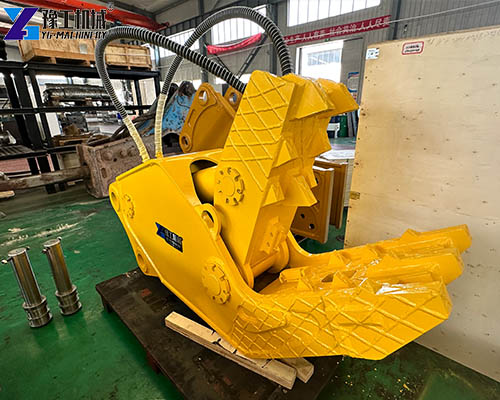

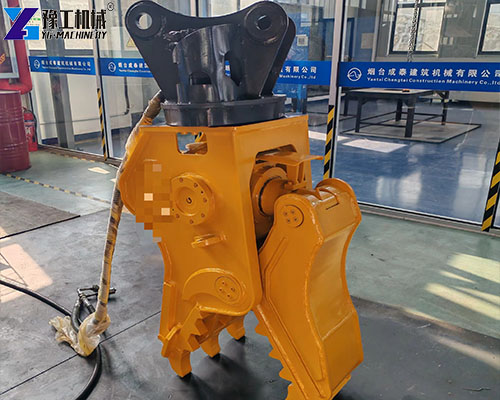

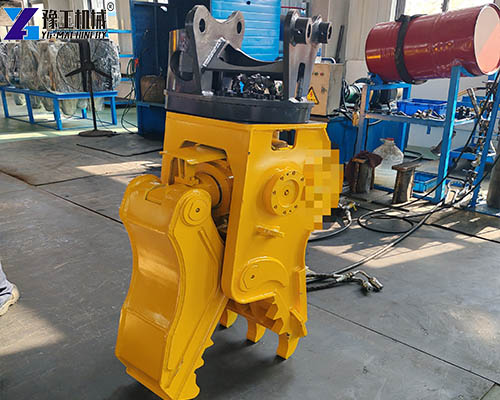

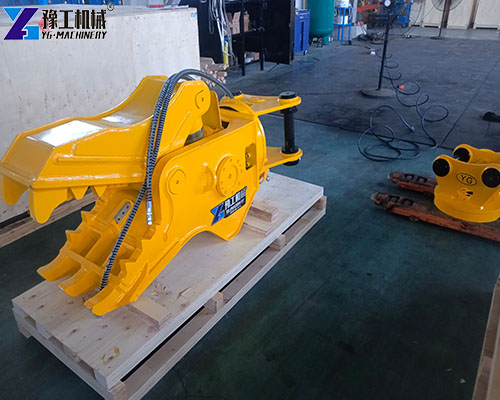

Pulverizer Attachment for Excavator

Pulverizer attachment for excavator is a demolition tool that crushes concrete and separates steel rebar in one step. It mounts on 6- to 80-ton excavators and uses two powerful jaws to break down walls, floors, and columns. Compared to breakers, it makes less dust and noise. The crushed concrete can be reused as aggregate, and the rebar can be sold for scrap. Simple to operate, it helps contractors save time and earn more from demolition waste.

View Full Technical Details

Concrete Pulverizer Attachment for Excavator – Full Parameter Table

Below are the complete specifications for our pulverizer attachment for excavator  series. All data are factory-tested for accurate machine matching.

Model	Unit	YG400	YG600	YG800	YG1000	YG1700
Total length	mm	1642	1895	2168	2218	3150
Total width	mm	1006	1275	1376	1598	2100
Blade length	mm	120	150	180	200	240
Max Opening Height	mm	587	718	890	1029	1400
Upper Jaw Width	mm	215	280	290	380	400
Lower Jaw Width	mm	458	586	588	720	812
Max Shear Force	kn	380	650	1650	2250	2503
Working Pressure	Bar	280	320	320	320	320
Weight	kg	670	1350	1750	2750	4709
For Excavator Weight	ton	6-9	10-15	18-26	26-30	50-80

Receive Detailed Parameter List

4 Applications of Excavator Pulverizer Attachment

An excavator pulverizer attachment is designed for primary and secondary demolition tasks where concrete needs to be crushed and rebar separated. Common job sites include:

• Building demolition – crushing concrete walls, floors, and columns into manageable pieces.
• Bridge and road reconstruction – breaking down reinforced concrete decks and abutments.
• Industrial plant dismantling – processing heavy foundation blocks and equipment bases.
• Recycling operations – separating steel rebar from crushed concrete for material recovery.

Unlike a breaker that impacts with high-frequency blows, this pulverizer attachment for excavator applies steady crushing force through its dual-jaw design. The result is produces crushed material ready for recycling, which increases the value of recycled materials. For contractors who need both crushing and shearing capabilities, the attachment is the most efficient single-tool solution.

Share Your Site Conditions With Us

4 Core Advantages of Hydraulic Pulverizer Excavator

This pulverizer attachment for excavator offers several performance benefits that make it superior to conventional demolition tools:

1. High crushing force – The YG1700 delivers 2503 kN of shear force, capable of processing heavily reinforced concrete columns and thick foundation walls. Even the entry-level YG400 provides 380 kN, sufficient for light demolition on 6–9 ton excavators.
2. Wide jaw opening – Maximum opening height ranges from 587 mm (YG400) to 1400 mm (YG1700), allowing the attachment to grip large concrete sections in a single bite.
3. Durable blade design – Blade lengths from 120 mm to 240 mm ensure long service life between replacements. The replaceable wear plates and cutting edges reduce downtime and maintenance costs.
4. Optimized jaw geometry – Upper and lower jaw widths are matched to provide balanced crushing force distribution, preventing material from slipping during operation.

For demolition contractors, the equipment reduces the need for multiple attachments. It crushes concrete,and processes debris in one continuous action – unlike a bucket or grapple that requires additional equipment to achieve the same result.

Find The Right Solution For Your Job

Excavator Pulverizer Attachment – Model Selection Guide

Choosing the correct pulverizer attachment for excavator depends on three factors: excavator weight, material thickness, and daily output requirements.

Excavator Weight	Recommended Model	Weight	Max Shear Force	Best For
6–9 ton	YG400	670 kg	380 kN	Light demolition, residential buildings
10–15 ton	YG600	1350 kg	650 kN	Medium structures, commercial buildings
18–26 ton	YG800	1750 kg	1650 kN	Heavy concrete, industrial sites
26–30 ton	YG1000	2750 kg	2250 kN	Thick walls, bridge decks
50–80 ton	YG1700	4709 kg	2503 kN	Large-scale demolition, infrastructure

Our engineering team can analyze your project specifications – including concrete thickness, rebar density, and excavator hydraulic flow – to recommend the optimal concrete pulverizer attachment for excavator for your operation.

Get Your Project‑Specific Quote

3 Service Support for Your Pulverizer Attachment for Excavator

We understand that downtime costs money. Every pulverizer attachment for excavator comes with:

• Wear parts availability – Blades, jaw plates, and hydraulic seals are stocked for quick replacement.
• Technical documentation – Installation drawings, operation manuals, and hydraulic connection guides.
• Remote assistance – Video call support for troubleshooting and maintenance guidance.

For bulk orders or fleet upgrades, we offer volume discounts and coordinated shipping schedules. Our team can also customize blade materials for specific applications – such as high-abrasion concrete or frozen materials.

Get a Free Quote Now

Get Your Hydraulic Pulverizer Excavator Quote Today

Ready to improve your demolition efficiency? Send us your excavator model, hydraulic flow rating, and typical material specifications. We will reply within 24 hours with a tailored recommendation, price, and delivery schedule for the right pulverizer attachment for excavator.
