Hydraulic Rock Drill and Splitter | Drill 1m/min & Split 8000T

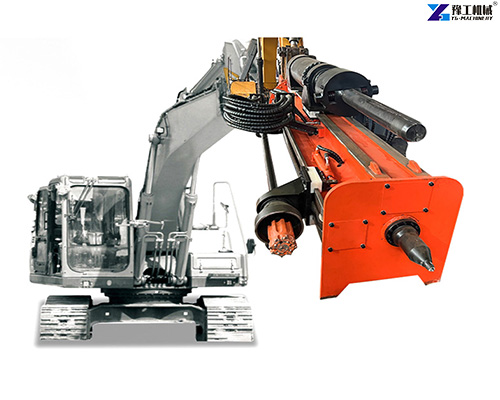

Hydraulic rock drill and splitter is an excavator attachment with both drilling and splitting functions. It gets power from the excavator’s hydraulic system. It can finish drilling and splitting work without changing tools. It is widely used in rock breaking, mine quarrying and foundation pit excavation. Compared with blasting, it works safely with low noise. It can break hard rocks such as granite and limestone. It improves construction efficiency and cuts labor and equipment costs.

View Full Technical Details

Part 1: Technical Specifications — Know Exactly What You Are Getting

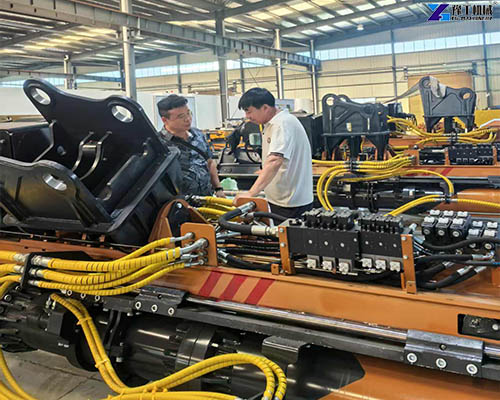

rock drill splitter manufacturing workshop

Here are the core parameters of the integrated rock drill and splitter. All data is based on actual factory testing.

Rock Drilling Machine
Power	Drilling hole diameter	Drilling depth	Drilling speed
24kw	Middle 120mm	1600mm	1m/min
Splitting Machine
Splitting depth	Splitting force	Rotation angle	–
1000MM	8000T	120°	–
Push Beam
Rock drilling maximum propulsion		Splitting maximum pullout force
25KN		70KN
Excavator requirements:>20T

Warranty Coverage

Component	Warranty Period	Notes
Whole machine	1 year or 2000 hours (whichever comes first)	Oil seals: replace at 300 hours of normal use
Hydraulic rock drill	12 months	Hydraulic motor: 6 months or 1000 hours; wear parts not covered (shank, copper sleeve, seal, cup)
Splitter cylinder	12 months	Normal use
Air compressor	6 months	Normal use
Track / rail assembly	6 months	Normal use
Splitter wedge block	3 months	Normal use
Hydraulic components	3 months	Normal use (use genuine grease)
Hoses and pipes	3 months	Normal use
Dust collector filter	3 months	Normal use
Electrical parts	1 month	Normal use (check input voltage)
Wear parts (no warranty)	—	Copper sleeve, shank, drill rod, drill bit, splitting wedge, wedge block

Wear parts (no warranty): Copper sleeve, shank, drill rod, drill bit, splitting wedge, wedge block

Find The Right Solution For Your Job

Part 2: Applications – Where the Hydraulic Rock Drill And Splitter Excels

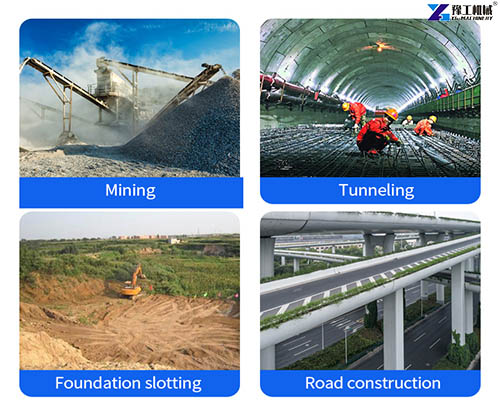

application scenarios for integrated rock drills and splitters

You do not need to be a technical expert to choose the right integrated rock drilling splitting machine. Match your project type to the recommendation below.

Mining and Quarrying

Hard rock mines and quarries need high-output rock breaking. The hydraulic rock drill and splitter delivers. Drill 120mm holes at 1m/min. Split with 8000 tons of force. Produce clean, manageable rock fragments without the cost and risk of explosives. Ideal for:

Granite, marble, limestone, and sandstone quarries
Open-pit mining operations
Block extraction and secondary breaking

Tunneling and Underground Construction

Blasting is often restricted in tunnel projects. Vibration can destabilize the tunnel face. Noise disturbs nearby communities. The hydraulic rock drill and splitter solve these problems. It splits rock with minimal vibration and low noise. Perfect for:

Road and railway tunnels
Metro and utility tunnels
Underground chambers and caverns

Demolition and Foundation Work

Reinforced concrete, bridge piers, building foundations – all can be broken with it. The integrated rock drill and splitter120° rotation angle allows access to tight spaces. Precise control means you break only what you need to break.

Road Construction and Site Preparation

Mountain roads, highway cuts, and site leveling all require rock removal. The hydraulic rock drill and splitter mounted on a 20T+ excavator provides mobility and power. Move from one location to the next without delays.

Share Your Site Conditions With Us

Part 3: Why Choose YG Integrated Rock Drill and Splitter?

factory rock drill splitter quality check

customer feedback on hydraulic rock drills and splitters

1. One Machine, Two Jobs – No Tool Switching

Traditional rock breaking requires a drill rig for holes and a separate splitter or breaker for breaking. The integrated rock drilling splitting machine does both. Drill the hole. Split the rock. All with one attachment.

This means:

No time wasted changing attachments
No need to buy two machines
One operator, one machine, one workflow

2. 8000 Tons of Splitting Force – Breaks the Hardest Rock

With 8000 tons of splitting force, this hydraulic rock drill and splitter can crack granite, basalt, limestone, and reinforced concrete. The splitter wedge inserts into the drilled hole and applies lateral pressure. Rock breaks along the hole line – clean, controlled, and predictable.

3. Non-Blasting – Safe, Quiet, and Permit-Free

This is a non-blasting rock-breaking solution. No explosives. No flyrock. No vibration damage to nearby structures. Noise levels are significantly lower than breakers or blasting.

For urban projects, tunnel construction, or sites near sensitive areas, this integrated rock drill and splitter is the only practical choice.

4. Mounts on Your Existing Excavator – No New Machine Needed

The hydraulic rock drill and splitter attaches directly to the excavator arm. It uses the excavator’s own hydraulic system. No separate power unit. No extra engine to maintain. Just connect and go.

Requires an excavator of 20 tons or larger.

5. Low Maintenance – Built for Remote Sites

The integrated rock drilling splitting machine features a simplified internal structure. Worn parts are easy to access and replace. The hydraulic drill delivers 1m/min drilling speed, reducing runtime and wear. With proper maintenance, the machine delivers years of reliable service in the toughest conditions.
