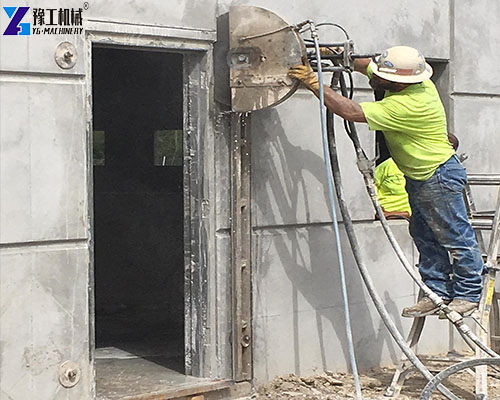

Concrete wall saw cutting machine is a machine that cuts reinforced concrete walls, brick walls, or stone. It mounts on a guide rail and uses a diamond blade to cut door openings, window openings, elevator holes, and other large wall sections. The cut is clean and structural damage is avoided – unlike traditional hammering.
This wall saw cutter is widely used in:
- Building renovation and reinforcement
- Old building modification
- Design changes requiring new openings
- Large-scale wall cutting
It only works on flat surfaces because the rail must be fixed. For irregular stones or cuts deeper than 73cm, a wire saw is recommended instead.
Concrete Wall Saw Cutting Machine – Parameter Tables
Below are the full specifications for our concrete wall saw cutting machine series, including hydraulic, high-frequency, and electric models.
Hydraulic Wall Saw Models
| Model | YG-600TM | YG-700TM | YG-800TM |
| Max. Power | 25KW | 30KW | 32KW |
| Motor Cooling | Air cooling | Water cooling | Water cooling |
| Rated Voltage | 380V 50HZ 3phase | 380V 50HZ 3phase | 380V 50HZ 3phase |
| Pressure Stages | 3 | 3 | 3 |
| Max. Operating Pressure | 200bar/20Mpa | 210bar/21Mpa | 210bar/210Mpa |
| Oil Flow Rate | 30-80L/min | 30-100L/min | 40-100L/min |
| Dimensions | 650×600×1150mm | 500×520×1100mm | 680×550×700mm |
| Weight | 180kg | 118kg | 120kg |
High-Frequency Wall Saw
| Parameter | Value |
| Max. Cutting Depth | 510mm |
| Max. Saw Blade | φ1200mm |
| Saw Blade Fixing | 6 countersunk head screws, 110mm graduated circle |
| Electric Motor | Water cooling & high frequency |
| Max. Output Power | 16kW |
| IP Classification | IP 67 |
| Wall Saw 105DM Incl. Feed Motor | 27kg |
| Electric Main Motor 16kW | 18kg |
| Control Unit Voltage | 380-460V (single-phase available) |
| Frequency | 50Hz/60Hz |
| Control Unit Weight | 19kg |
| Wireless Control | 2kg |
Electric Wall Saw Models
| Model | YG-800 | YG-1000 | YG-1200 |
| Cutting Depth | 320mm | 420mm | 520mm |
| Saw Blade Diameter | 800mm | 1000mm | 1200mm |
| Power/Voltage | 7280W/220V | 7580W/220V | 7880W/220V |
| Rotary Speed | 400r/min | 380r/min | 350r/min |
| Machine Weight | 35kg | 38kg | 45kg |
| Machine Size | 55×55×78cm | 55×55×88cm | 55×55×98cm |
Each electric model comes in manual, semi-automatic, or full-automatic types.
Receive Detailed Parameter List
Hydraulic Wall Saw Cutting Machine – YG-600TM to YG-800TM
The hydraulic wall saw cutting machine consists of a power station and a saw head (hydraulic motor). Standard models are 600TM, 700TM, and 800TM.
Max cutting depth:
- 600TM: 62cm
- 700TM: 73cm
- 800TM: 73cm
Standard configuration for hydraulic wall saw:
- Pump station
- Wall saw head
- Guide rail 1m × 1 piece
- Guide rail 2m × 1 piece
- Oil pipes 10m × 6 pieces
- Blade guard (850mm) × 1
- Saw blade (800mm) × 1
- Rail mounting brackets × 4
- Rail stops × 4
- Toolbox × 1 set
Oil pipe details: 6 pipes total, each 10m. One 1-inch, one 3/4-inch, four 3/8-inch.
Voltage: 380V 50Hz, 3-phase. Other 3-phase voltages can be customized.
Find The Right Solution For Your Job

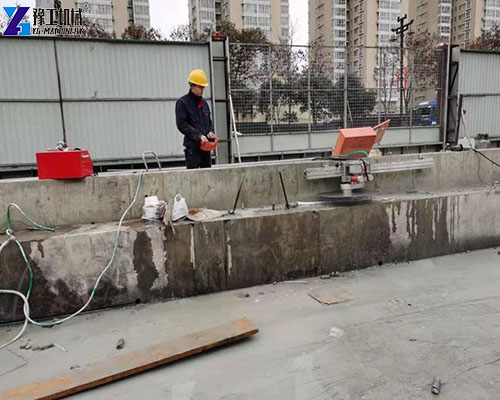

High-Frequency Wall Cutting Saw – 17kW Remote Control Model
The concrete wall saw cutting machine in high-frequency version uses an electric motor on the saw head, a control box, and a remote control. It is smaller and lighter than hydraulic models and lower in price.
Key features:
- 380V/220V single-phase and three-phase switchable
- Small size, lightweight, easy to transport
- Remote control operation with visual intelligent cutting
- Split design for quick disassembly – one person can install and operate
- Italian imported motor for high cutting efficiency
Main model: 17KW wireless remote control type. Max cutting depth: 51cm.
Factory configuration for high-frequency wall saw:
- Saw head × 1
- Track 3m (one 2m + one 1m)
- Station × 1
- Cables × 2 (each 7.5m long, customizable)
- Blade guard × 1
- 800mm saw blade × 1
- Wireless remote × 1
- Toolbox × 1
Two 6mm² cables, each 7.5m standard length.
Get Your Project‑Specific Quote

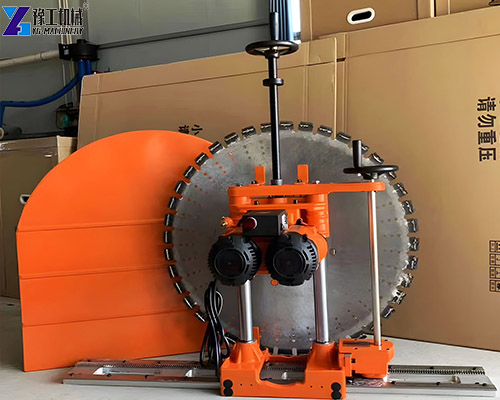

Electric Wall Saw Cutter – YG-800, YG-1000, YG-1200
The wall saw cutter in electric version is commonly sold in a manual type. Models:
| Model | Max Cutting Depth | Saw Blade | Voltage |
| YG-800 | 30cm | 800mm | 220V |
| YG-1000 | 40cm | 1000mm | 220V |
| YG-1200 | 50cm | 1200mm | 220V |
Standard delivery for manual electric wall saw:
- YG-800: complete machine, 2 guide rails (1.2m each), blade guard, 800mm A-grade blade
- YG-1000: complete machine, 2 guide rails (1.2m each), 1m blade guard, 1000mm A-grade blade
- YG-1200: complete machine, 2 guide rails (1.2m each), 1.2m blade guard, 1200mm A-grade blade
Voltage: 220V 50Hz single-phase. Cannot be changed.
Difference from high-frequency: Ordinary electric wall saws have low power (7KW) and low efficiency. High-frequency wall saws have high power (17KW), an Italian-imported motor, and switchable 220V/380V. Professional cutting contractors usually choose the high-frequency model.
Wall Saw Cutter vs High-Frequency vs Electric – How to Choose
Choosing the right wall cutting saw depends on cutting depth and power supply.
| Type | Max Cutting Depth | Voltage | Best For |
| Hydraulic 600TM | 62cm | 380V 3-phase | Heavy cutting, professional use |
| Hydraulic 700TM/800TM | 73cm | 380V 3-phase | Deepest cuts, large walls |
| High-Frequency 17KW | 51cm | 380V/220V switchable | Most countries, remote control |
| High-Frequency 20KW | 62cm | 380V/220V switchable | Deeper cuts with high frequency |
| Electric YG-800 | 30cm | 220V single-phase | Light work, simple jobs |
| Electric YG-1000 | 40cm | 220V single-phase | Medium depth |
| Electric YG-1200 | 50cm | 220V single-phase | Deeper cuts, budget option |
Blade selection by depth:
- 800mm blade → 30cm
- 1000mm blade → 40cm
- 1200mm blade → 50cm
- 1400mm blade → 60cm
- 1600mm blade → 70cm
For cuts deeper than 73cm, use a wire saw instead.
Wall Cutting Saw – Standard Configurations and Blade Guide
Every concrete wall saw cutting machine comes with a standard set of accessories. Here are the key items:
- Hydraulic wall saw: Pump station, saw head, 1m rail, 2m rail, 6 oil pipes (10m each), blade guard, 800mm blade, 4 mounting brackets, 4 rail stops, toolbox.
- High-frequency wall saw: Saw head, 3m track (2m + 1m), station, 2 cables (7.5m each), blade guard, 800mm blade, wireless remote, toolbox.
- Electric wall saw: Complete machine, 2 guide rails (1.2m each), blade guard, A-grade blade.
- Blade life: One blade cuts about 15-20 square meters, or 100 meters of cut. Life depends on material and cutting frequency. Blades are consumables – we recommend ordering extra.
- Cutting efficiency: 3-6 meters per hour. For 50cm depth, concrete cuts at 2-3 m/h. Granite cuts 2-3 times faster.
Common Questions About Concrete Wall Saw Cutting Machine
A: Cutting object and project type. Cutting depth/wall thickness (most important). Electric or hydraulic preference. For Europe, the Middle East, and developed markets, hydraulic is recommended first.
A: Yes. The motor rotates at high speed and gets very hot. Connect a water pipe to the saw head inlet. The customer supplies the water hose.
A: Yes. Each rail has connectors to join them together.
A: Choose a high-frequency wall saw – wireless and wired remote options available. For hydraulic remote, recommend 800TM.
A: Hydraulic: standard 380V 3-phase; other 3-phase customizable. High-frequency: 380V/220V switchable. Electric: 220V single-phase; cannot be changed.
