Excavator shear for sale is a hydraulic attachment designed for cutting and processing metal materials in demolition and recycling operations. It uses an excavator-mounted hydraulic system to provide strong cutting performance for steel structures, scrap materials and other metal components.
The YG series excavator shear adopts an eagle-beak structure design with hydraulic drive. It is mainly used for steel cutting, including steel bars, I-beams, steel pipes, vehicle bodies and light steel structures. The attachment is widely applied in scrap steel processing, demolition crushing and waste recycling projects.
With multiple models from YG180RT to YG980RT, users can select a suitable configuration according to excavator size and cutting requirements.
Excavator Scrap Shear Models and Selection Guide
The excavator scrap shear series covers different sizes for excavators from 8 tons to 120 tons.
| Model | Suitable Excavator Weight | Weight |
| YG180RT | 8-12 ton | 700kg |
| YG250RT | 12-18 ton | 1100kg |
| YG320RT | 18-25 ton | 1600kg |
| YG400RT | 25-35 ton | 2200kg |
| YG500RT | 35-45 ton | 3200kg |
| YG600RT | 45-65 ton | 4000kg |
| YG700RT | 60-80 ton | 5200kg |
| YG800RT | 80-100 ton | 8000kg |
| YG980RT | 100-120 ton | 10500kg |
The available models provide different cutting capacities and hydraulic requirements. Buyers can select the attachment according to excavator tonnage, material type and working conditions.
Receive Detailed Parameter List
Hydraulic Shears for Excavator Features and Advantages
The excavator shear for sale are designed with several structural features that improve cutting efficiency and adaptability.
1. Large Opening Design for Material Handling
Feature: The shear adopts an eagle-beak structure with a large opening design.
Advantage: The attachment can hold and cut larger metal materials more efficiently.
Benefit: Operators can process steel structures, pipes and other scrap materials with fewer positioning adjustments.
2. Hydraulic Drive System for Strong Cutting Force
Feature: The attachment uses hydraulic power from the excavator.
Advantage: The hydraulic system provides stable cutting force during operation.
Benefit: The equipment can handle different steel cutting tasks in demolition and recycling applications.
3. Wide Excavator Compatibility
Feature: The series includes nine models from YG180RT to YG980RT.
Advantage: Different excavator sizes can be matched with corresponding shear models.
Benefit: Customers can select equipment according to their existing excavator fleet instead of replacing the carrier machine.
4. Adjustable Hydraulic Configuration
Feature: Different models have different working pressures and oil flow requirements.
Advantage: The hydraulic specifications can match different excavator systems.
Benefit: The attachment can be configured for different machine sizes and working environments.
Find The Right Solution For Your Job
Excavator Shear for Sale Applications in Recycling and Demolition
The excavator shear for sale is mainly used in industries requiring metal cutting and material processing.

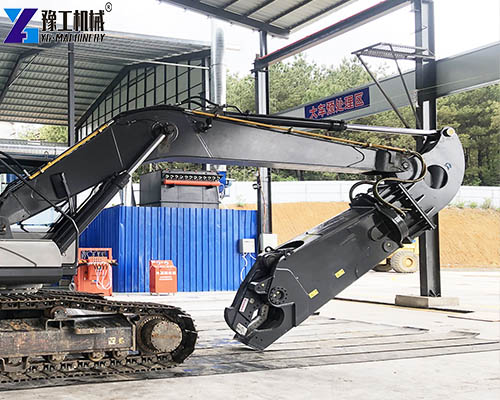

1. Scrap Steel Recycling
In scrap recycling yards, the attachment can cut steel materials into smaller sections for further processing. The documented applications include scrap steel processing and waste recycling.
2. Building Demolition Projects

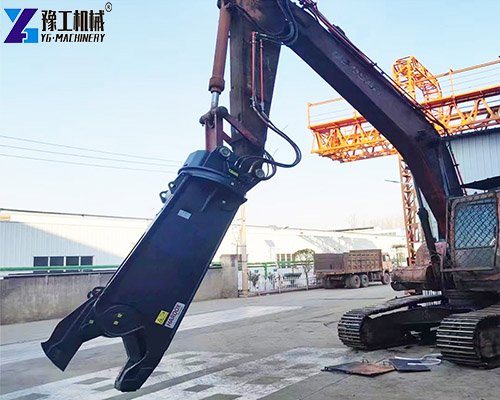

During demolition operations, the shear can process steel structures, steel bars and other metal components.
3. Metal Structure Cutting
The equipment is suitable for cutting I-beams, steel pipes and light steel structures.
4. Vehicle Body Processing
The attachment can also be used for cutting vehicle bodies during recycling operations.
Share Your Site Conditions With Us
Excavator Scrap Shear Technical Specifications
The main specifications of the YG series are shown below:
| Model | Excavator Weight | Working Pressure | Oil Flow | Opening | Cutting Depth |
| YG180RT | 8-12 ton | 240 bar | 160 L/min | 330mm | 140mm |
| YG250RT | 12-18 ton | 260 bar | 180 L/min | 400mm | 160mm |
| YG320RT | 18-25 ton | 280 bar | 220 L/min | 480mm | 180mm |
| YG400RT | 25-35 ton | 300 bar | 260 L/min | 550mm | 200mm |
| YG500RT | 35-45 ton | 320 bar | 300 L/min | 650mm | 220mm |
| YG600RT | 45-65 ton | 320 bar | 350 L/min | 750mm | 250mm |
The full series extends to YG980RT for larger excavators. The specifications vary according to model size, including weight, hydraulic pressure, oil flow, opening size, cutting depth and overall dimensions.
Get Professional Selection Advice
Hydraulic Shears for Excavator Installation Requirements
Before selecting excavator shear for sale, users should confirm several key parameters:
| Selection Item | Required Information |
| Excavator size | Carrier machine tonnage |
| Hydraulic pressure | Available working pressure |
| Oil flow | Excavator hydraulic flow |
| Cutting material | Steel type and thickness |
| Working condition | Recycling, demolition or processing |
Matching the shear model with the excavator hydraulic system helps ensure proper operation and cutting performance.
Get Your Project‑Specific Quote
Excavator Shear for Sale FAQ
A: The attachment can cut steel bars, I-beams, steel pipes, vehicle bodies and light steel structures.
A: The series covers excavators from 8 tons to 120 tons, with models from YG180RT to YG980RT.
A: The documented applications include scrap steel processing, demolition crushing and waste recycling.
A: The attachment uses the excavator hydraulic system as its power source. Hydraulic pressure and oil flow requirements vary by model.
Excavator Shear for Sale Solution for Metal Processing Projects
With hydraulic drive, multiple model options and strong cutting capability, the YG series provides an efficient attachment solution for scrap processing, demolition and metal recycling applications.
Contact us to select the suitable excavator shear model according to your excavator size and cutting requirements.
