in large-scale hydraulic stone splitter operations

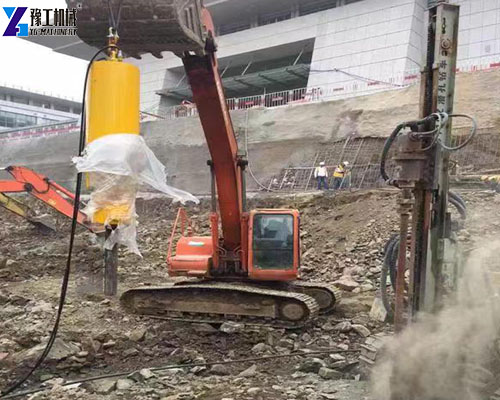

hydraulic stone splitter working
Hydraulic concrete splitter is an excavator‑mounted hydraulic attachment that generates massive static hydraulic force via wedge assemblies. It splits rock and concrete cleanly from inside pre‑drilled holes with nearly no vibration, noise or flying debris, serving as an environmentally friendly alternative to breaker hammers and blasting operations. There are two main types: splitting‑only units and integrated drill‑and‑split machines.
It uses extreme hydraulic pressure to crack rock and concrete from the inside out – with zero vibration, zero flyrock, and zero noise pollution. It requires pre-drilled holes, then splits the material cleanly along the desired line.
Important distinction: The machine is not the same as an integrated drilling and splitting machine. The machine handles splitting only – it requires pre-drilling. The integrated version combines both functions. Both achieve the same rock-breaking effect. Choose based on your budget, project volume, and site conditions.
This article covers the complete specifications and applications of the hydraulic splitter for rock – models YGM-S200 and YGM-S280 – to help you select the right one.
1. Zero Vibration – Safe for Urban and Sensitive Sites
Unlike breakers or blasting, the hydraulic concrete splitter produces no vibration. It applies static hydraulic pressure to expand the wedge, cracking the material from within. Adjacent buildings, pipelines, and underground utilities remain completely unaffected.
For projects near hospitals, schools, residential areas, or historic structures – the rock splitter for excavator is the only safe choice.
2. No Blasting Permits – Faster Project Start
Blasting requires permits, insurance, and specialized crews. The machine eliminates all of that. No explosives. No flyrock. No regulatory delays. You can start splitting as soon as the excavator and drill rig are on site.
3. Quiet Operation – No Noise Complaints
Breakers generate noise levels above 110 dB. The machine operates at a fraction of that – just the sound of hydraulic flow. Night work, residential areas, and indoor demolition become feasible without disturbing the neighborhood.
hydraulic rock splitter machine – customer visits factory
hydraulic rock splitter machine factory
4. High Splitting Force – 3800 to 5700 Tons
The hydraulic concrete splitter delivers tremendous splitting power. The YGM-S280 exerts 5700 tons of force – enough to crack the hardest granite and heavily reinforced concrete. It handles what breakers struggle with.
5. Clean, Controlled Splitting – Straight Cracks
The machine produces clean, straight cracks along the predetermined drill line. This means less overbreak, less waste, and more usable material. The crack width of 32- 35 mm ensures effective splitting without fragmenting the material excessively.
6. Mounts on Your Excavator – Simple Setup
The hydraulic rock splitter machine attaches directly to your excavator arm. It uses the excavator’s auxiliary hydraulic system – no additional power unit required. The splitter gun length of 2700- 2800 mm allows deep splitting in a single pass.
Old buildings, bridge piers, parking structures, and foundation slabs – the hydraulic splitter for rock removes concrete without shaking adjacent properties. Perfect for downtown redevelopment projects where vibration and noise are strictly regulated.
2. Quarrying and Dimension Stone Extraction
The machine is widely used in marble, granite, and limestone quarries for block extraction. It produces clean, straight splits – minimizing waste and maximizing the yield of valuable dimension stone.
3. Tunneling and Underground Excavation
Blasting is often restricted in tunnel projects due to vibration risks. The hydraulic concrete splitter provides a safe alternative. It works effectively in confined spaces – the 2700- 2800 mm splitter gun length fits standard tunnel headings.
4. Underwater and Marine Construction
River dredging, harbor deepening, and reef removal – the machine can be used in submerged conditions with appropriate seals. No vibration means no damage to adjacent underwater structures.

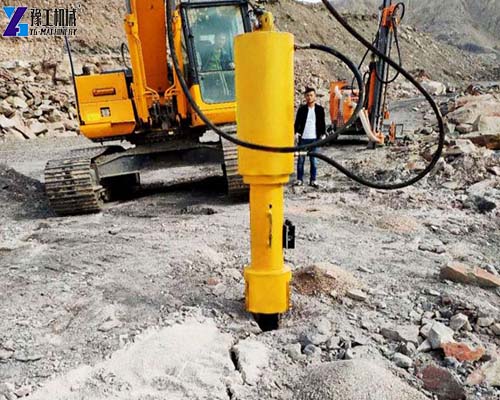

rock splitter for excavator working site

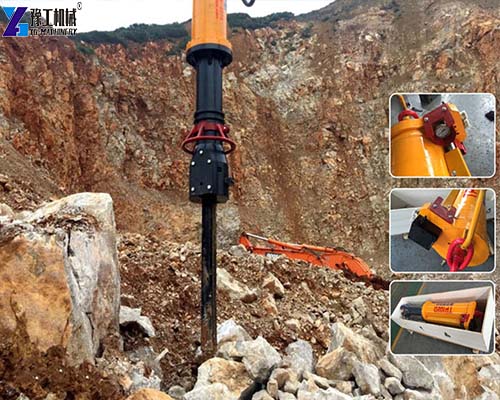

rock splitter for excavator splitting rock
5. Foundation and Basement Rock Removal
When excavating basements in rocky ground, the machine breaks the rock layer without affecting the surrounding soil or adjacent foundations. It provides precise control for depth-limited excavations.
6. Slope Stabilization and Rockfall Control
For slope trimming and rockfall mitigation, the rock splitter for an excavator produces controlled fractures along bedding planes, stabilizing slopes without causing further rockfalls.
Consider your rock hardness – For medium-hard rock (limestone, sandstone, concrete), the YGM-S200 with 3800T force is sufficient. For hard granite, basalt, or heavily reinforced concrete, choose the YGM-S280 with 5700T.
Check your drilling equipment – The YGM-S200 requires 90-110mm holes. The YGM-S280 requires 110- 130 mm holes. Ensure your drill rig can match these diameters and 1600-1700mm depths.
Plan your drill pattern – The hydraulic concrete splitter YGM-S200 uses a drill gap distance of 1000- 1500 mm. The YGM-S280 uses 2000- 2500 mm. Larger gaps mean fewer holes per square meter – faster and cheaper installation.
Stop paying for blasting permits. Stop dealing with noise complaints. Start splitting rock cleanly, quietly, and safely with a hydraulic concrete splitter mounted on your excavator.
We offer:
Factory-direct pricing for YGM-S200 and YGM-S280 models
Technical guidance for drill pattern optimization
Fast global shipping with reinforced export packaging
Full spare parts support
On-site or remote installation support
Contact us with your excavator model, rock type, and project requirements. We will recommend the perfect rock splitter for excavator within 24 hours.
