Waste tyres can be processed into rubber granules, rubber powder, steel, and separated fiber. But different recycling projects have different processing volumes, working modes, site sizes, and final material requirements.
A small operation may need a compact batch system. A larger recycling plant may need continuous processing and higher daily capacity.
The right waste tyre recycling machine should therefore be selected according to the actual recycling process and production requirements.
Which situation is closest to the project?
Get Professional Selection Advice
“I Process a Small Amount of Waste Tyres Each Day”
Some recycling projects start with a relatively small daily tyre volume. In this case, a smaller production model can be more suitable.
The main specifications to check are:
- Daily processing capacity
- Working mode
- Reactor size
- Total equipment weight
- Site requirements
The YG-3 has a capacity of 1–3 t/d and uses batch operation. Its reactor size is φ1400 × 4900 mm, while the required land area is about 18 m × 4.2 m × 6 m.
The YG-6 increases capacity to 4–6 t/d, while YG-10 reaches 8–10 t/d. These models provide different production levels for projects with different daily tyre volumes.
For a small recycling operation, matching the machine capacity with the actual amount of waste tyres is an important first step.
YG waste tyre recycling machine should not be selected only by its model name. Daily processing requirements and the available site should be considered together.
Find The Right Solution For Your Job

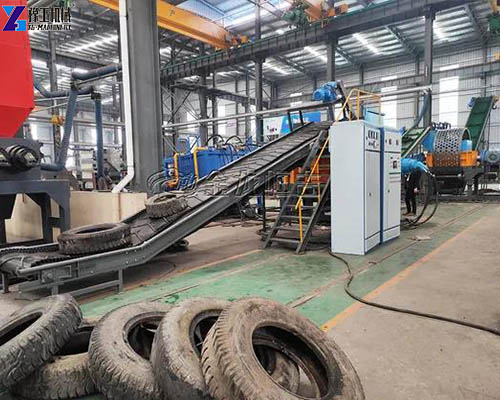

“I Need a Semi-Automatic Tire Recycling Line”
Some projects need a defined recycling process but do not require a fully continuous production system.
YG semi-automatic process described in the product information includes tyre bead removal, strip cutting, block cutting, steel ring separation, rubber powder processing, and nylon air separation when fiber removal is required.
The process can be organized as:
Waste Tyres → Bead Removal → Strip Cutting → Block Cutting → Steel Ring Separation → Rubber Powder Processing → Nylon Separation
This configuration can separate useful components from waste tyres through several processing stages.
When choosing a waste tyre recycling machine, consider the required material output along with the desired processing sequence.
If nylon fiber does not need to be removed, the product information indicates that nylon air separation equipment may not be required.
This makes the process configuration an important part of equipment selection.
Find The Right Solution For Your Job

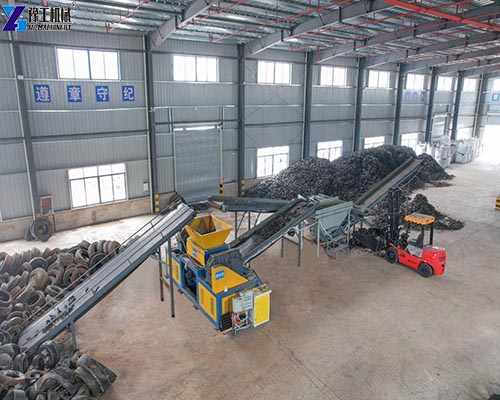

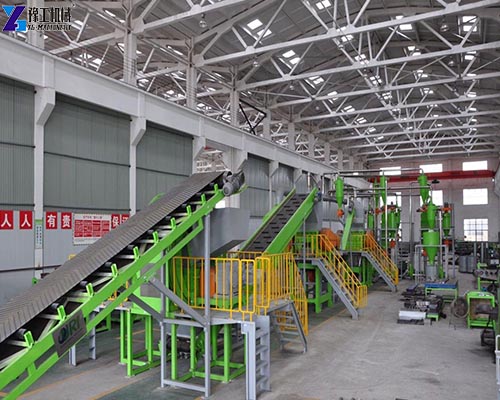

“I Need Higher Daily Capacity and Continuous Processing”
Larger recycling operations may need to process a much greater volume of waste tyres every day.
Here, the key specifications are:
- Daily capacity
- Working mode
- Equipment power
- Site area
- Material processing system
The product range covers capacities from 1–3 t/d to 30–35 t/d. The YG-30 provides the highest listed capacity at 30–35 t/d and uses fully continuous operation.
| Model | Capacity | Working Mode | Power |
| YG-3 | 1–3 t/d | Batch | 16.65 kW |
| YG-6 | 4–6 t/d | Batch | 37.85 kW |
| YG-10 | 8–10 t/d | Batch | 44.3 kW |
| YG-16 | 12–16 t/d | Batch | 55.6 kW |
| YGL-16 | 8 t/d | Semi-continuous | 55.6 kW |
| YG-30 | 30–35 t/d | Fully continuous | 256 kW |
For a high-volume project, the waste tire recycling line should be evaluated around the required daily capacity first.
The YG-30 also has a much larger overall land requirement of about 70 m × 20 m × 10 m, so production capacity and site planning need to be considered together.
Receive Detailed Parameter List
“I Need Different Rubber Sizes for Different Applications”
Not every recycling project has the same final material requirement.

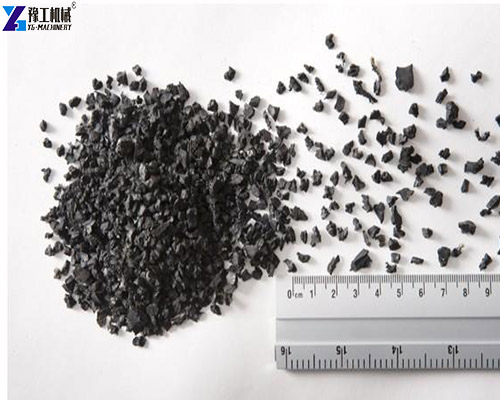

The product information states that rubber particle fineness can be adjusted and that the finished particle size can be made uniform. The equipment can also be configured for both rubber granule and rubber powder production.
Common applications listed for recycled tyre particles include:
- Plastic running tracks
- Sports fields
- Football fields
- Rubber floor tiles
- Playground filling
- Rubber rolls
- Rubber flower pots
- Fuel applications
Particles in the 3–28 mm range are listed for applications such as sports surfaces, rubber tiles, and related products.
For a tyre recycling machine for sale, the required final particle size should therefore be confirmed before selecting the equipment configuration.
A project producing rubber powder may require a different setup from a project producing larger rubber granules.
Get Your Project‑Specific Quote
Still Not Sure Which Waste Tyre Recycling Machine Fits the Project?
Four questions can quickly narrow the selection:
| Project Question | Specification to Check |
| How many tyres need to be processed daily? | Daily capacity |
| Is batch or continuous processing required? | Working mode |
| How much installation space is available? | Land area and reactor size |
| What material needs to be produced? | Rubber particle or powder size |
The available models cover different production levels, from 1–3 t/d to 30–35 t/d. Working modes include batch, semi-continuous, and fully continuous operation.
The listed equipment also has noise levels of ≤60 dB, while total shipped material weights range from about 18 tons to 150 tons depending on the model.
Once the required daily capacity, working mode, available site, and final rubber material are clear, the suitable waste tyre recycling machine becomes easier to identify.
If more detailed specifications, process configuration, or model recommendations are required, please contact us for further information.
