Below are the full specifications for our twin shaft shredder series. All models use a dual-shaft independent drive.
| Model | Knife size | Power (KW) | Capacity (T/H) | Knife quantity | Reducer | Machine size (Meter) | Weight (Ton) |
| YG-600 (6-8 teeth) | Φ200*20 | 11*2 | 0.3-0.5 | 30 | 350*2 | 2.612.1 | 2 |
| Φ220*20 | 11*2 | 0.4-1 | 30 | 350*2 | 2.61.12.1 | 2.2 | |
| YG-1000 (6-8 teeth) | Φ300*30 | 30*2 | 1-1.2 | 34 | 400*2 | 3.41.252.2 | 6 |
| Φ300*40 | 37*2 | 1-1.5 | 26 | 500*2 | 3.41.252.2 | 6.3 | |
| Φ400*40 | 37*2 | 1-2 | 26 | 500*2 | 3.41.252.2 | 6.5 | |
| Φ400*50 | 45*2 | 1.5-2.5 | 20 | 650*2 | 3.41.252.2 | 7 | |
| YG-1200 (6-12 teeth) | Φ300*40 | 45*2 | 2.5-3 | 30 | 650*2 | 3.81.252.2 | 8 |
| Φ400*40 | 45*2 | 2.8-3.3 | 30 | 650*2 | 3.81.252.2 | 8.5 | |
| Φ500*40 | 55*2 | 3-3.5 | 30 | 650*2 | 3.81.252.2 | 9 | |
| YG-1500 (6-15 teeth) | Φ300*30 | 55*2 | 3.8-4.5 | 50 | 750*2 | 4.41.52.5 | 11 |
| Φ400*40 | 55*2 | 4-5 | 38 | 750*2 | 4.41.52.5 | 12 | |
| Φ500*50 | 75*2 | 4.5-5.5 | 30 | 750*2 | 4.41.52.5 | 14 | |
| Φ550*50 | 75*2 | 5-6 | 30 | 750*2 | 4.41.52.5 | 16 | |
| YG-1800 (9-18 teeth) | Φ400*40 | 90*2 | 6-7 | 45 | Zsy355*2 | 5.32.12.8 | 17 |
| Φ550*50 | 90*2 | 7.5-8.5 | 36 | Zsy355*2 | 5.32.12.8 | 18 | |
| Φ600*60 | 90*2 | 9-10 | 30 | Zsy400*2 | 5.32.12.8 | 19 | |
| YG-2000 (9-18 teeth) | Φ550*50 | 110*2 | 10-13 | 40 | Zsy400*2 | 62.23.5 | 22 |
| Φ600*60 | 110*2 | 12-16 | 34 | Zsy450*2 | 62.23.5 | 23 | |
| Φ650*60 | 110*2 | 15-20 | 34 | Zsy450*2 | 62.23.5 | 25 |
YG twin shaft shredder range covers capacities from 0.3 to 20 tonnes per hour.
Find The Right Solution For Your Job
What Can a Twin Shaft Shredder Process?
A dual shaft shredder machine handles thick, hard-to-shred materials that single-shaft machines cannot process. Common materials include:
- Electronic waste
- Plastic – pipes, drums, PET bottles, purge lumps
- Metal – light scrap, cable drums
- Wood – logs, pallets, furniture
- Rubber – tires, sheets, conveyor belts
- Packaging – drums, baskets, pallets
- Large films and rolls
- Paper – cardboard, paper rolls
- Circuit boards
This machine is used in industrial waste recycling, medical recycling, electronics manufacturing, pallet making, wood processing, municipal waste, plastic recycling, tire recycling, and paper recycling.

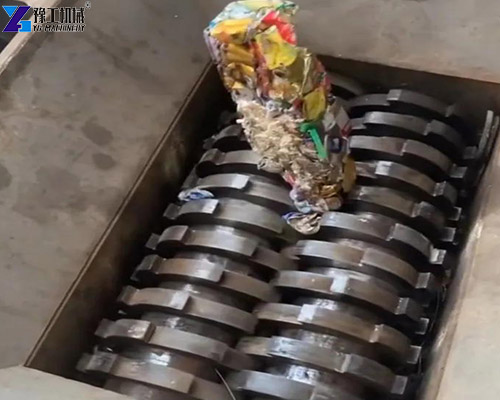

The dual-shaft independent drive creates automatic feeding pressure. The unique shaft and four-corner rotary knives prevent wrapping and jamming – even with sticky or tough materials.
Get Your Project‑Specific Quote
How to Choose a Two Shaft Shredder for Your Material
Choosing the right two shaft shredder depends on three things: material type, required capacity, and output size.
| Material Type | Recommended Model | Why |
| Paper, fibre, rubber | YG-600 to YG-1000 | Softer materials need less power |
| Wood, hard plastic, furniture | YG-1000 to YG-1500 | Medium hardness, higher torque needed |
| Tires, metal, electronic waste | YG-1800 to YG-2000 | Toughest materials, highest power |
Select 9CrSi blades when cutting soft‑grade substances such as paper and fibre.
Cr12MoV or SKD‑11 blades work well for processing wood and hard plastics.
SKD‑11 delivers optimal performance for applications involving mixed materials.
Send us your material type and target capacity. We will recommend the exact machine model for your job.
Get Professional Selection Advice
Two Shaft Shredder Blade Material and Service Life
The blades are the most important wear part of any twin shaft shredder. We offer three blade materials:
| Blade Material | Properties | Best For |
| 9CrSi | High hardness, good wear resistance, more brittle | Rubber, fibre, paper – soft materials |
| Cr12MoV | Good wear and impact resistance | Wood, furniture, hard plastic |
| SKD-11 | Excellent wear and impact resistance | Heavy-duty shredding, mixed materials |
Blade service life: For tire shredding, blades can last 3-4 years. Harder materials reduce blade life.
Custom blade size: We can customize blade size based on your required output particle size.
Warranty: 1 year for the whole machine. Blades are wear parts and are not covered.
Find The Right Solution For Your Job
FAQ About Dual Shaft Shredder Machine
A: 1 year.
A: The blades (knives) are the main wear parts.
A: Depends on material. Tire shredding: 3-4 years. Harder materials: shorter life.
A: Yes, based on your required output size.
A: Yes. For small machines, power can be adjusted. For large changes, please confirm with our engineers.
A: Yes, you will receive full manuals after purchase.
A: Yes, diesel engine options are available.
Get Your Project‑Specific Quote
Why Buy Your Twin Shaft Shredder from Us?
We specialize in shredding equipment. Our twin shaft shredder offers:
- Multiple models from 0.3 to 20 t/h
- PLC control with automatic reverse
- Low speed, high torque – less noise and dust
- Special alloy steel blades – long service life
- Large feed hopper – accepts bulky items
- Customizable blade size and motor power
- Operation and maintenance manuals included
- 1-year warranty
We also offer the machine with an optional diesel engine. Tell us your material and capacity, and we will match the right machine.
Find The Right Solution For Your Job
Get a Quote for Your Dual Shaft Shredder for Sale
Ready to shred tough materials? Send us:
- Material type
- Required capacity (t/h)
- Required output size
We will reply within 24 hours with the right dual shaft shredder for sale recommendation and price.
