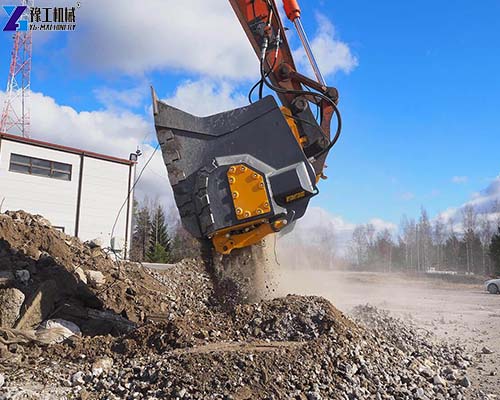

excavator crusher attachment wide site view

excavator crusher bucket large scale operation

Below are the full specifications for our crusher bucket for excavator series. All models are factory-tested.

SPECIFICATION	UNIT	YG-1	YG-2	YG-3	YG-4	YG-5	YG-6	YG-7	YG-8
Carrier Weight	Ton	8-12	14-18	120-25	25-30	30-35	35-50	50-75	≥ 75
Load Capacity	m³	0.15	0.55	0.66	0.70	0.90	1.30	1.60	2.30
Opening Dimensions	mm	L540 H250	L610 H510	L740 H510	L850 H510	L910 H540	L1205 H540	L1300 H600	L1450 H700
Output Setting	mm	15-60	15-60	15-130	15-135	15-140	15 – 145	40-150	100-200
Length (A)	mm	1240	1745	2000	2050	2185	2185	2930	3560
Width (B)	mm	1000	1000	1150	1300	1340	1620	1880	2090
Height (C)	mm	770	1100	1200	1400	1390	1390	170	2065
Weight	Ton	0.75	1.6	2.3	3	3.5a	4.8	7.5	10.5
Oil Flow	l/min	90	98	140	160	180	210	320	380
Pressure	bar	200	220	220	220	220	220	250	230
Counter	bar	10	10	10	10	10	10	10	10
Max. Production	m³/h	10	23	31	34	42	53	88	120

YG crusher bucket for excavator range covers carriers from 8 to 75+ tonnes.

Find The Right Solution For Your Job

What Can an Excavator Crusher Attachment Process?

crusher bucket for excavator panoramic view

An excavator crusher attachment turns demolition waste into reusable material. It processes:

Concrete blocks and slabs
Reinforced concrete
Demolition debris
Rock and stone
Asphalt
Bricks and tiles

The output setting ranges from 15mm to 200mm depending on the model. You can adjust the output size to match your project needs. The crushed material can be used directly on site or sold as aggregate.

This attachment is ideal for:

Building demolition
Road reconstruction
Quarry operations
Recycling plants
Site clearance

Find The Right Solution For Your Job

How to Choose a Concrete Crusher Bucket for Your Excavator

Choosing the right crusher bucket for excavator depends on three factors: excavator weight, required output size, and production capacity.

Carrier Weight	Recommended Model	Load Capacity	Max Production
8-12 ton	YG-1	0.15 m³	10 m³/h
14-18 ton	YG-2	0.55 m³	23 m³/h
20-25 ton	YG-3	0.66 m³	31 m³/h
25-30 ton	YG-4	0.70 m³	34 m³/h
30-35 ton	YG-5	0.90 m³	42 m³/h
35-50 ton	YG-6	1.30 m³	53 m³/h
50-75 ton	YG-7	1.60 m³	88 m³/h
≥75 ton	YG-8	2.30 m³	120 m³/h

Check your excavator’s oil flow and pressure. The concrete crusher bucket must match your machine. Too small and you waste capacity. Too large and your excavator cannot power it.

Get Your Project‑Specific Quote

Output Uses from a Concrete Crusher Bucket

After crushing with a crusher bucket for excavator, the material can be used for:

Road base – crushed concrete replaces virgin aggregate
Backfill – clean, compactable material for trenches
Drainage layers – uniform size for water flow
Landscaping – decorative stone and paths
Recycling – sold to aggregate buyers

On-site crushing saves transport costs. You do not need to haul waste away or bring in new aggregate. The crusher bucket for excavator does both jobs in one step.
